Design and build specifications

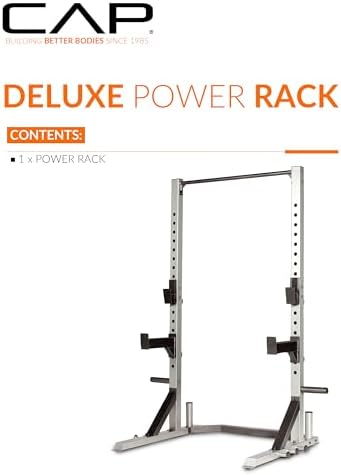

The standard benchmark for structural durability in home gym racks is 11-gauge steel with 3x3-inch uprights. The Cap Barbell FM-8000F falls below this threshold, using lighter 12- and 14-gauge steel tubing across its frame. The manufacturer does not state the precise exterior dimensions of the uprights, so buyers must verify accessory compatibility before planning expansions. The assembled unit stands 85 inches tall, spans 61 inches wide, and measures 47 inches deep. Because overhead movements require space above the frame, lifters must measure ceiling height before purchasing, ensuring adequate clearance above the 85-inch peak for pull-ups and standing presses. The structure weighs 103 pounds fully assembled and features corner gussets alongside a three-step powder-coat finish. Hardware includes capped ends to mitigate internal moisture exposure, but the overall reliance on thinner steel profiles limits structural rigidity when subjected to dynamic lateral loads.
Real-world load performance
Operational tolerances are tightly constrained on this frame compared to heavy-duty alternatives. The total rack capacity is rated at 600 pounds, but the J-cup bar catches are rated for only 300 pounds. This creates an immediate limitation for anyone whose working sets approach three plates on squats or bench presses. The overhead pull-up station also maintains a maximum user capacity of 300 pounds. At a baseline equipment weight of 103 pounds, the rack tends to shift during re-racks or aggressive pull-up sets unless weighted down. The integration of two rear Olympic plate posts mitigates this issue by allowing lifters to anchor the unit with counterweights. The included safety catches provide baseline drop protection, but their length and gauge mean they should be treated as emergency measures rather than daily bail-out platforms for heavy, high-velocity missed repetitions.
Value for money assessment
Priced at $189.99, the FM-8000F targets budget-conscious buyers seeking an all-in-one footprint without the cost of modular commercial gear. The inclusion of two J-cups, two safety catches, a pull-up station, six resistance band posts, and barbell storage sleeves provides baseline utility right out of the box. The aggregate customer rating of 4.2 out of 5 across 1,959 reviews reflects satisfaction aligned with entry-level expectations. However, durability compromises are clear in the post-purchase support. Cap Barbell supplies only a 30-day limited manufacturer warranty, which offers virtually no long-term coverage against structural fatigue or finish failure. While the sub-$200 cost makes it one of the least expensive enclosed frames on the market, lifters must accept that replacement parts or rack upgrades will be required if training volume and barbell loads increase over time.
Who should skip this rack
Lifters with working sets exceeding 250 pounds should skip the FM-8000F entirely due to its 300-pound catch threshold and 12- to 14-gauge construction. Anyone planning to pursue competitive powerlifting or heavy strength progression will quickly outgrow its structural limitations. Buyers with low ceilings under eight feet must also pass, as the 85-inch frame leaves minimal head room for chin-ups and eliminates overhead presses inside the cage. Lifters seeking compatibility with the vast aftermarket ecosystem of 3x3-inch or 2x3-inch attachments with standard 5/8-inch or 1-inch holes should look elsewhere, as this frame relies on proprietary component sizing. Finally, those who demand equipment backed by multi-year warranties should avoid this model, as a 30-day warranty window does not guarantee long-term weld integrity or material resilience under repeated barbell impacts.
